Lincoln SAE 300 MP Perkins Ready-Pak Welder Generator (K4089-1-RP1)

The SAE 300 combines a rugged design with traditional pure DC generator technology for excellent welding performance in pipe, construction, and maintenance applications.

Applications
• Pipeline
• Construction
• Maintenance & Repair

Features
• Meets all EPA Tier 4 Requirements
• 3-Cylinder, water-cooled, 1800 RPM Kubota Diesel Engine
• Big fuel savings compared to previous engines
• Fuel gauge on control panel
• Two continuous dials on the control panel allow for a precise setting of both voltage and current for critical pipe welding applications
• Adjust the arc for a snappy "digging" arc for root and hot passes on pipe with cellulosic electrode, or for a soft "buttery" arc for pipe welding with low hydrogen electrode
• Pipeline operators will enjoy welding with the arc produced from the rotating armature/field coil system manufactured for many years by Lincoln Electric
• All copper windings enhance arc stability for a really smooth, high performance arc
• 300 Amps output @ 60% duty-cycle, welds up to 7/32" fleetweld 5P + cellulosic and Excalibur low hydrogen electrodes.

Quick Specs
• Output Range: 50-390A DC Welding, 3000 Watts AC Power
• Rated Output: 250A DC/30V/100%, 300A DC/32V/60%
• 3 Cylinders
• 24.7 HP @ 1800 RPM
• Weight: 1,432 lbs
• Dims: 37"H X 24"W X 63"L (46"H to top of exhaust)

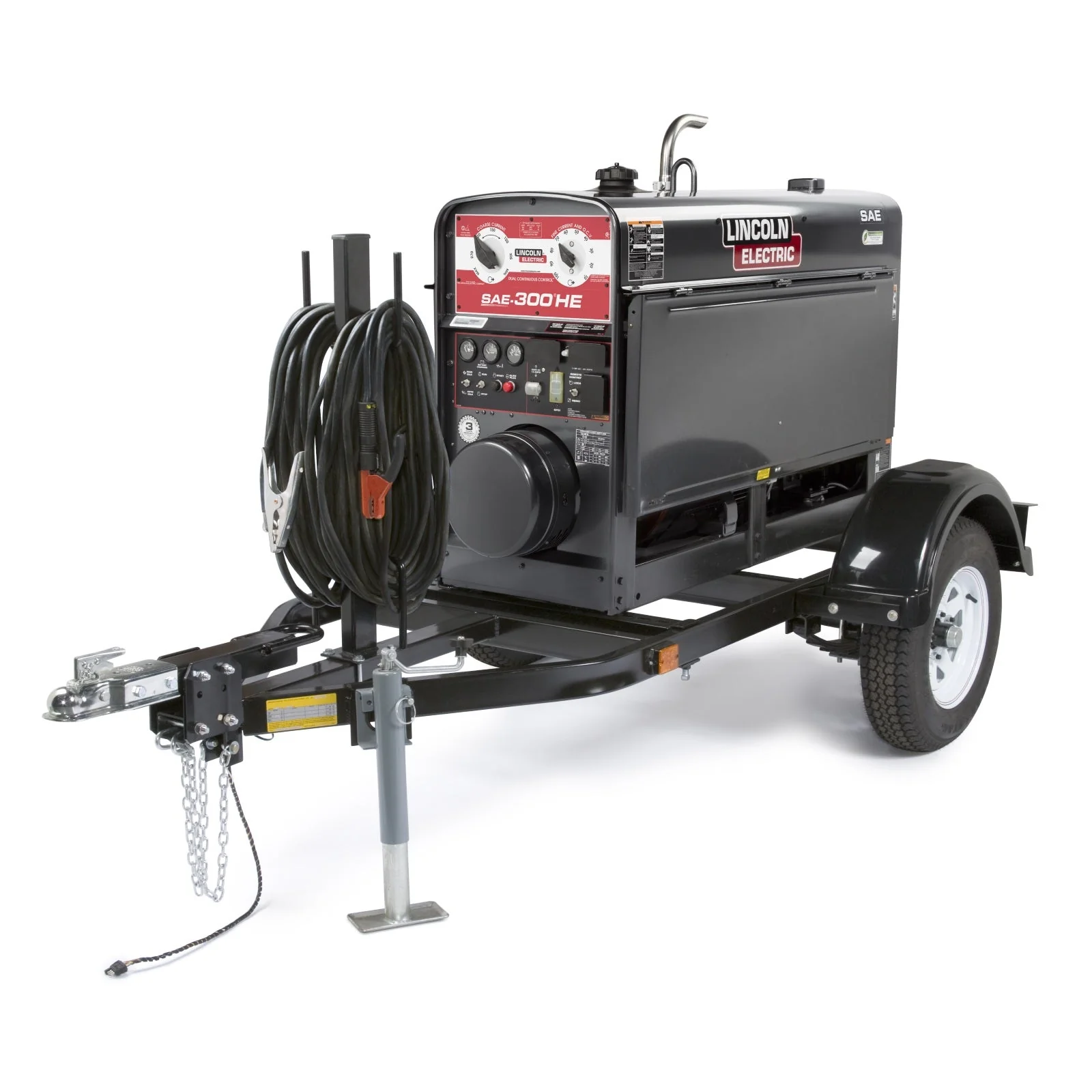

Includes (Assembled)
• SAE 300 HE (without wire feed module)
• Medium Welder Trailer (K2636-1)
• Duo-Hitch 2 in Ball/Lunette Eye Hitch (included)
• Fender and Light Kit (K2639-1)
• Cable Rack (K2640-1)
• Cable Connectors - two (K2487-1)
• Electrode Cable 2/0, two 50 ft lengths (K2485-2)
• Electrode Cable 2/0, 10 ft (K2483-2)
• Work Cable 2/0, 50 ft (K2484-2)
• 300A Electrode Holder (K909-7)
• 300A Work Clamp (K910-1)
